Getting Started With Next.js and GraphQL Authentication

WL

William Lyon / January 24, 2021

11 min read

This is the fourth post in a series about building a podcast application using GRANDstack. Check out the previous episodes here:

Subscribe To Will's Newsletter

Want to know when the next blog post or video is published? Subscribe now!

In this post we turn our attention to the frontend of the podcast application we've been building on the Neo4j livestream. So far we’ve focused on the backend and GraphQL API layer. This week we got started on the front end, using the Next.js React framework. You can find the livestream recording embedded below or on the Neo4j Youtube channel.

In this post we'll focus on getting started with Next.js, fetching data using GraphQL in our Next.js application, and setting up client-side authentication with GraphQL in Next.js so we can sign in and make authenticated requests to our GraphQL API.

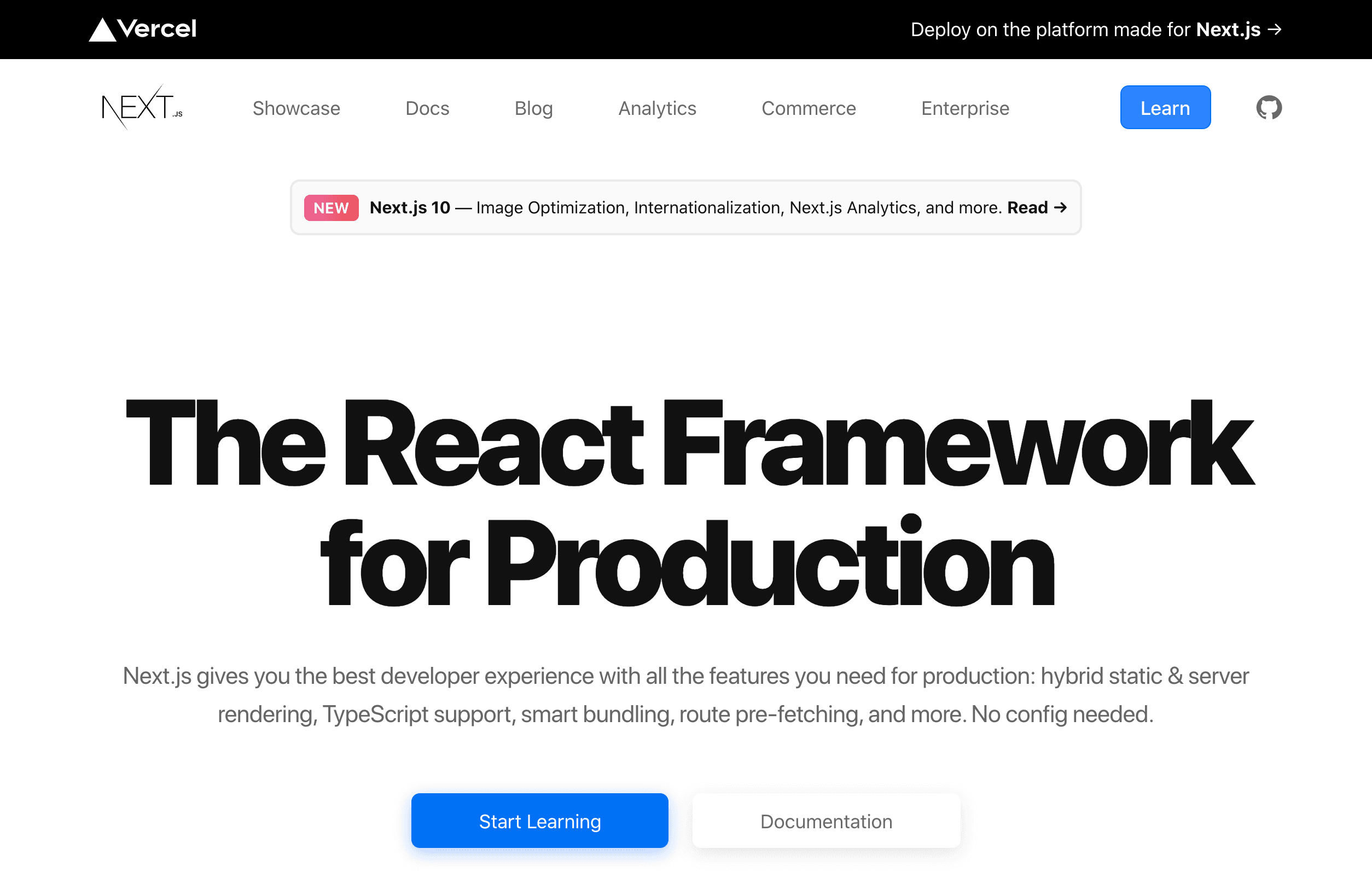

What Is Next.js?

Next.js is a web framework built on top of React that adds many features and conventions that aren't available by default with React. Things like server side rendering, file based routing, image optimization, code splitting and bundling, and adding server-side API routes are things we eventually need to deal with as our React application becomes more complex. With Next.js we have all these things (and lots more) available out of the box. I like to think of Next.js as React with batteries included.

Getting Started With Next.js

The easiest way to get started with Next.js is using the create-next-app CLI. Similar to create-react-app or create-grandstack-app, we can create an initial Next.js application from the command line.

terminal
npx create-next-app next-app

The create-next-app command can take an example argument to specify an example template to use. There are two example Next.js templates for using Next.js with Neo4j:

We're going to skip these Neo4j specific templates since we've already built out our GraphQL API. In a future post we'll see how we can move our GraphQL API into Next.js, taking advantage of the serverless function deployment built into Next.js API routes.

To start our Next.js application we'll run

terminal
npm run dev

which will start a local server at localhost:3000 serving our Next.js application.

GraphQL Data Fetching With Next.js

The first thing we want to do is make data fetching queries with GraphQL and display podcast data in our Next.js application. To do this we'll use Apollo Client. First, let's install Apollo Client, by default this will include the React hooks integration for Apollo Client as well.

terminal
npm i @apollo/client

In React applications we make use of the Provider pattern and the React Context API to make data available throughout the React component hierarchy. The React integration for Apollo Client includes an ApolloProvider component that we can use to inject an Apollo Client instance into the React component hierarchy, which will make Apollo Client available to any component in our application. To do this we need to create an Apollo Client instance and wrap our application's root component in the ApolloProvider component. In Next.js we can do this in the _app.js file.

pages/_app.js
import '../styles/globals.css'
import {
  ApolloProvider,
  ApolloClient,
  InMemoryCache,
  HttpLink,
} from '@apollo/client'

function createApolloClient() {
  const link = new HttpLink({
    uri: 'http://localhost:4001/graphql',
  })

  return new ApolloClient({
    link,
    cache: new InMemoryCache(),
  })
}

function MyApp({ Component, pageProps }) {
  return (
    <ApolloProvider client={createApolloClient()}>
      <Component {...pageProps} />
    </ApolloProvider>
  )
}

export default MyApp

Note the use of an HttpLink instance. With Apollo Client, links are composable units, similar to middleware, that allow us to inject logic into the networking layer of a GraphQL request. Here we create a link to point Apollo Client to our GraphQL API running at localhost:4001/graphql. Later, we'll use the link to add an authorization header that includes an auth token once a user has signed in to the application, but for now we'll start with making unauthenticated GraphQL requests.

Making GraphQL Queries With Apollo Client In A Next.js Page#

With Next.js' file based routing system we can create new pages just by creating a file in the pages directory and exporting a React component. Let's create a podcasts page to display a list of available podcasts. We'll make use of the useQuery Apollo Client hook to execute a GraphQL query to find all podcasts in the database and return their title.

pages/podcasts.js
import { useQuery, gql } from '@apollo/client'

const PodcastQuery = gql`
  {
    Podcast {
      title
    }
  }
`

const Podcasts = () => {
  const { data } = useQuery(PodcastQuery)

  return (
    <div>
      <ul>
        {data?.Podcast.map((v) => {
          return <li key={v.title}>{v.title}</li>
        })}
      </ul>
    </div>
  )
}

export default Podcasts

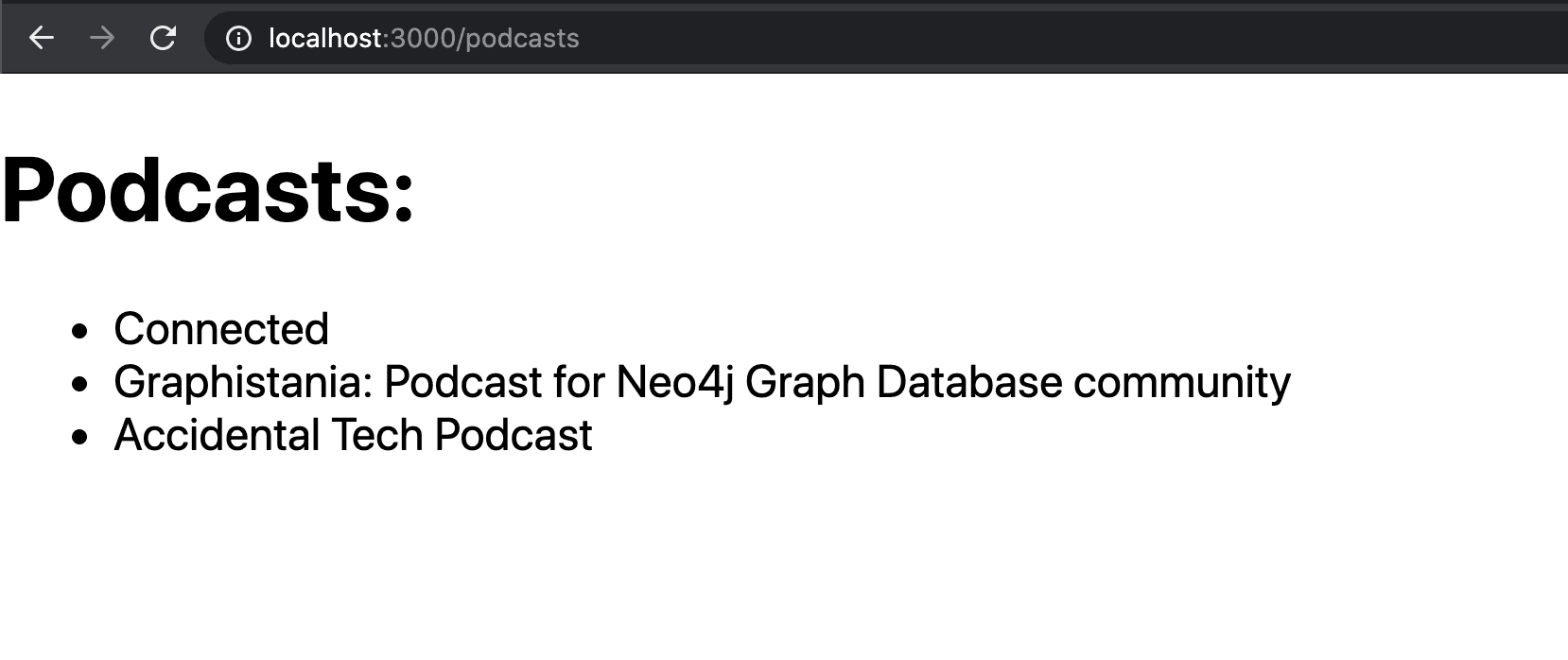

Next.js will automatically add a route at /podcasts to render our new page.

There are only a few podcasts in the database since they are only added to the database when a user subscribes. Refer to Episode 2 to see how we implemented podcast subscribe functionality.

Slight Detour - Setting Up The GraphQL VS Code Extension#

If you use the VS Code editor it can be helpful to make use of the GraphQL VS Code extension. This extension will enable syntax highlighting in .graphql files, gql template tags, and can also be used to execute GraphQL queries that are tagged in your JavaScript files. To use the GraphQL VS Code extension you'll need to install it from the extension marketplace here. Then you'll also need to configure your project's GraphQL APIs in a GraphQL config file. Here's a simple example for this project:

.graphqlrc.yml
schema: 'api/src/schema.graphql'
extensions:
  endpoints:
    default:
      url: http://localhost:4001/graphql

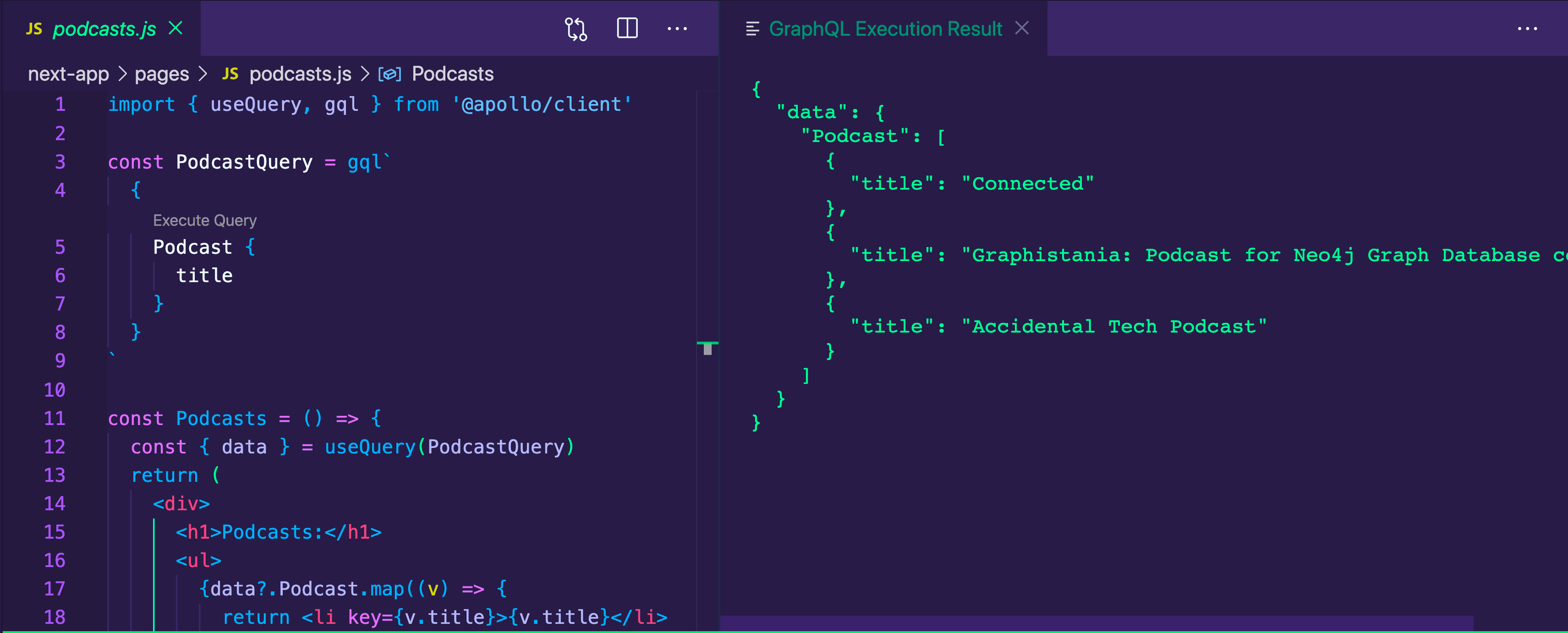

This will now allow us to execute GraphQL queries from VS Code that we've tagged with the gql template tag:

Authenticated GraphQL Requests In Next.js

We've seen how to make use of Apollo Client in our Next.js application to render a list of available podcasts, however this only works for unauthenticated GraphQL requests. We need to allow users to sign in to our application and then once they've signed in expose the user-specific functionality that we've built into our GraphQL API layer: podcast subscribe, new episode feeds, and create/view/update episode playlists.

To handle authentication and the associated state (Is the user signed in? What is the user's auth token?) we will make use of the React Context API and the Provider pattern again, this time creating our own AuthProvider that will allow us to keep track of and update authentication related state. Specifically, we'll need to:

  • Execute the login GraphQL mutation operation to sign a user into the application.
  • The login GraphQL mutation will return a JWT token when a user successfully signs in. We'll need to keep track of that token.
  • When a user is signed in and a valid JWT is generated we need to add the token to all GraphQL requests as an authentication header.
  • Allow a user to sign out.

All of this functionality will then be made available to any of our application components by importing the useAuth hook that we will create in our authentication provider.

lib/auth.js
import React, { useState, useContext, createContext } from 'react'
import {
  ApolloProvider,
  ApolloClient,
  InMemoryCache,
  HttpLink,
  gql,
} from '@apollo/client'

const authContext = createContext()

export function AuthProvider({ children }) {
  const auth = useProvideAuth()

  return (
    <authContext.Provider value={auth}>
      <ApolloProvider client={auth.createApolloClient()}>
        {children}
      </ApolloProvider>
    </authContext.Provider>
  )
}

export const useAuth = () => {
  return useContext(authContext)
}

function useProvideAuth() {
  const [authToken, setAuthToken] = useState(null)

  const isSignedIn = () => {
    if (authToken) {
      return true
    } else {
      return false
    }
  }

  const getAuthHeaders = () => {
    if (!authToken) return null

    return {
      authorization: `Bearer ${authToken}`,
    }
  }

  const createApolloClient = () => {
    const link = new HttpLink({
      uri: 'http://localhost:4001/graphql',
      headers: getAuthHeaders(),
    })

    return new ApolloClient({
      link,
      cache: new InMemoryCache(),
    })
  }

  const signIn = async ({ username, password }) => {
    const client = createApolloClient()
    const LoginMutation = gql`
      mutation signin($username: String!, $password: String!) {
        login(username: $username, password: $password) {
          token
        }
      }
    `

    const result = await client.mutate({
      mutation: LoginMutation,
      variables: { username, password },
    })

    console.log(result)

    if (result?.data?.login?.token) {
      setAuthToken(result.data.login.token)
    }
  }

  const signOut = () => {
    setAuthToken(null)
  }

  return {
    setAuthToken,
    isSignedIn,
    signIn,
    signOut,
    createApolloClient,
  }
}

Note how we make use of the HttpLink to add the authentication header to GraphQL requests when a user is signed in. We also wrap the ApolloProvider component in our AuthProvider which will make Apollo Client and the authentication functionality available to any child components in the React component hierarchy. We'll need to update _app.js to use this new AuthProvider:

_app.js
import '../styles/globals.css'
import { AuthProvider } from '../lib/auth.js'

function MyApp({ Component, pageProps }) {
  return (
    <AuthProvider>
      <Component {...pageProps} />
    </AuthProvider>
  )
}

export default MyApp

The Sign In Flow#

Now that we've implemented authentication functionality in our AuthProvider we can implement the sign in flow in our index page. First, we'll want to import the new useAuth hook we created:

pages/index.js
import { useAuth } from '../lib/auth.js'

Now, let's add a SignIn component with a form for the user to submit their username and password. When the user submits the form we'll call the signIn function made available in auth.js which will execute the login GraphQL mutation and generate an auth JSON Web Token (JWT).

pages/index.js
const SignIn = () => {
  const [username, setUsername] = useState('')
  const [password, setPassword] = useState('')

  const { signIn, signOut } = useAuth()

  function onSubmit(e) {
    e.preventDefault()
    signIn({ username, password })
  }

  return (
    <div>
      <form onSubmit={onSubmit}>
        <input
          type="text"
          placeholder="username"
          onChange={(e) => setUsername(e.target.value)}
        ></input>
        <input
          type="password"
          placeholder="password"
          onChange={(e) => setPassword(e.target.value)}
        ></input>
        <button type="submit">Sign In</button>
      </form>
    </div>
  )
}

Once a user is signed in we want to show their podcast episode feed - the most recent podcast episodes across all the podcasts they subscribe to. This is available via the episodeFeed GraphQL query field. We'll create a FeedQuery component to execute this query and render the results in a list. Since the user is signed in, the appropriate auth token will be added in the header of the GraphQL request, making this an authenticated GraphQL request against our API.

pages/index.js
const FeedQuery = gql`
  {
    episodeFeed(first: 50) {
      id
      title
      audio
      podcast {
        title
      }
    }
  }
`

const EpisodeFeed = () => {
  const { data } = useQuery(FeedQuery)
  const { signOut } = useAuth()
  return (
    <div>
      <h1>Episode Feed</h1>
      <ul>
        {data?.episodeFeed.map((v) => {
          return <li key={v.id}>{v.title}</li>
        })}
      </ul>
      <button onClick={() => signOut()}>Sign Out</button>
    </div>
  )
}

Next, we'll make use of the isSignedIn function made available via useAuth to determine whether to render the sign in form or the episode feed component.

pages/index.js
export default function Home() {
  const { isSignedIn } = useAuth()
  return (
    <div className={styles.container}>
      <Head>
        <title>GRANDcast.FM</title>
        <link rel="icon" href="/favicon.ico" />
      </Head>

      <main className={styles.main}>
        <h1>GRANDcast.FM</h1>
        {!isSignedIn() && <SignIn />}
        {isSignedIn() && <EpisodeFeed />}
      </main>
    </div>
  )
}

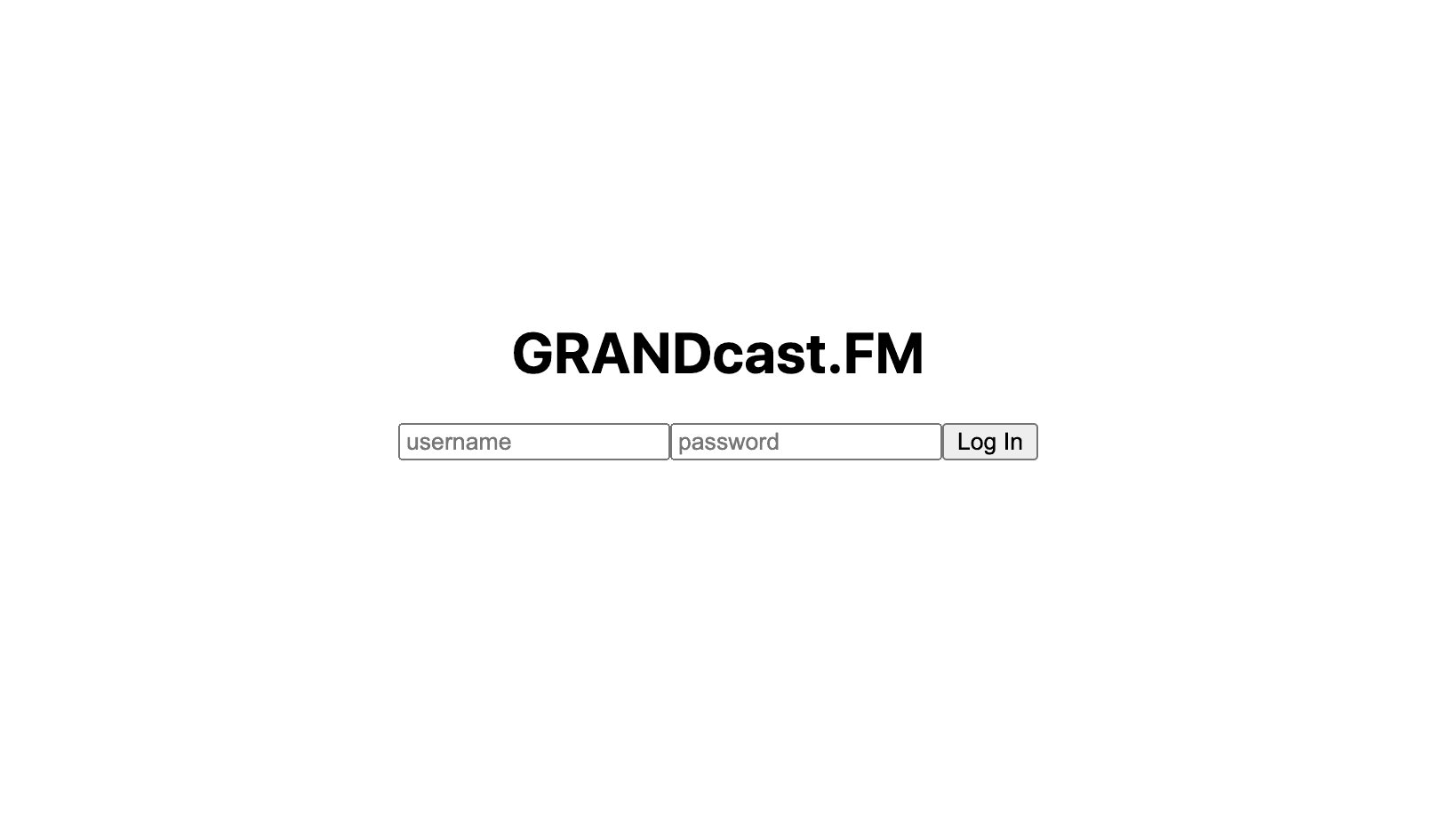

Now, when we first load the page we're presented with a sign in form that will execute the login GraphQL mutation when submitted. If a successful login, then the GraphQL server will generate an authorization JWT and return the token to the client. Our auth provider will store that token and attach it in the authorization header of all future GraphQL requests, until we log out.

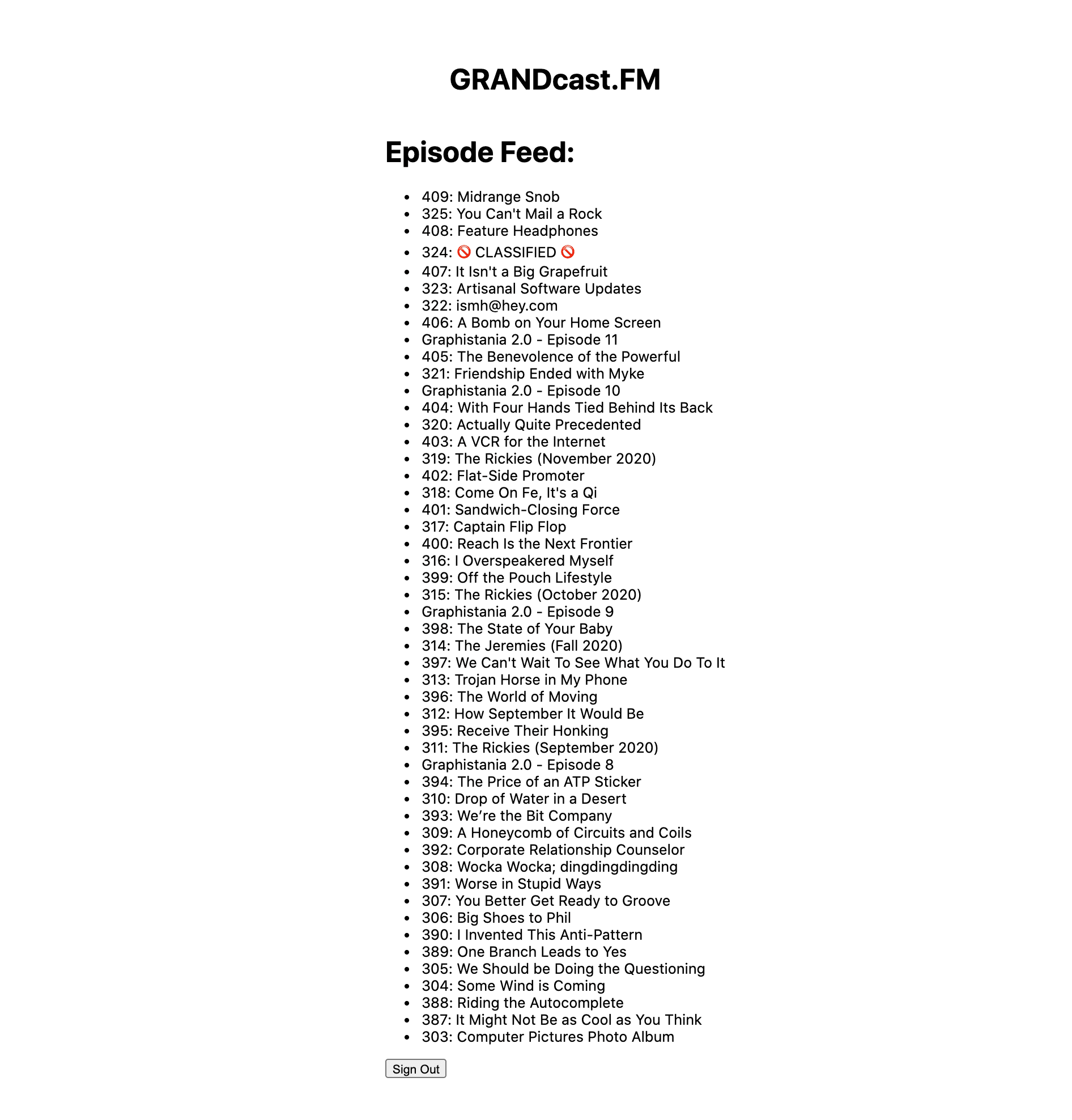

Once we're authenticated, instead of the login form, we're presented with a list of the most recent podcast episodes for all podcasts to which we subscribe. We can click the "Sign Out" button, which will update the authentication state in our application, remove the token from future GraphQL requests, and we'll be presented with the sign in form again.

Now that we've set up client-side authentication in our Next.js application we can start to explore the different data-fetching patterns available to us in Next.js. We skipped over this functionality in this post but the different server data-fetching models in Next.js are some of the most interesting features of the framework. We'll dig into this in the next episode.

Be sure to subscribe to the Neo4j livestream on Twitch or Youtube to keep up to date as we build out more features in GRANDcast.FM. What else would you like us to explore on the livestream? Let us know on Twitter. And please drop any comments and feedback specific to this post over at Dev.to
